This inspection machine can be applied in preform inspection , glass bottles , PP bottles ,IV bag inspection.

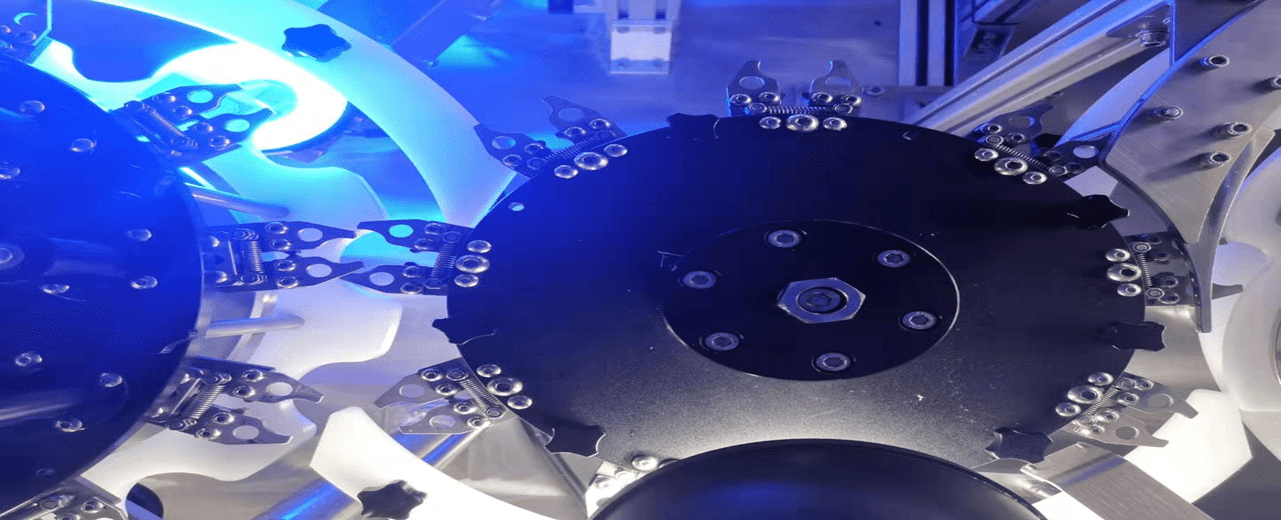

• Through the transfer between star wheels, the inspected bottles are sent to each appearance inspection station in sequence.

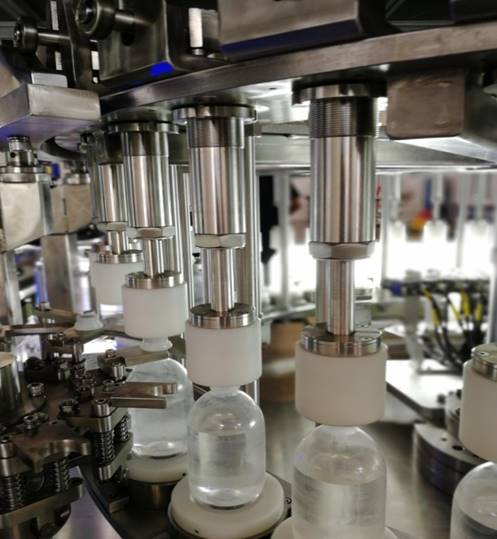

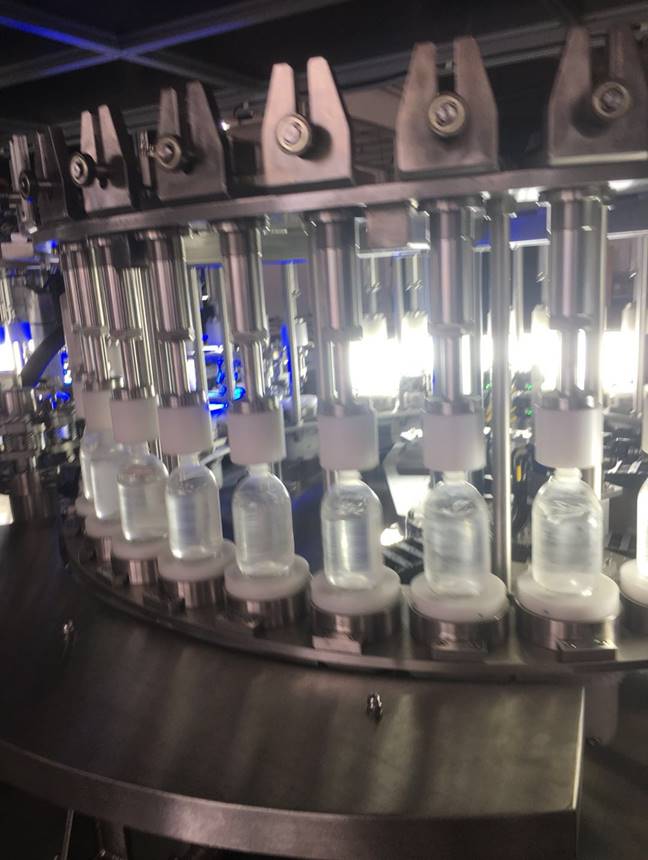

• After the bottle under inspection is transported to the particle detection turntable, the bottle rotation is driven by the rotating bottle motor, and the rotation stops after the bottle enters the detection area, and the high-speed camera collects pictures of the bottle.

• After completing the picture collection of all inspection stations, the visual system will identify and determine whether the inspected bottle is defective, and send the result to the PLC. If it is identified as an unqualified bottle, the PLC will control the action of the rejection mechanism. Remove defective products

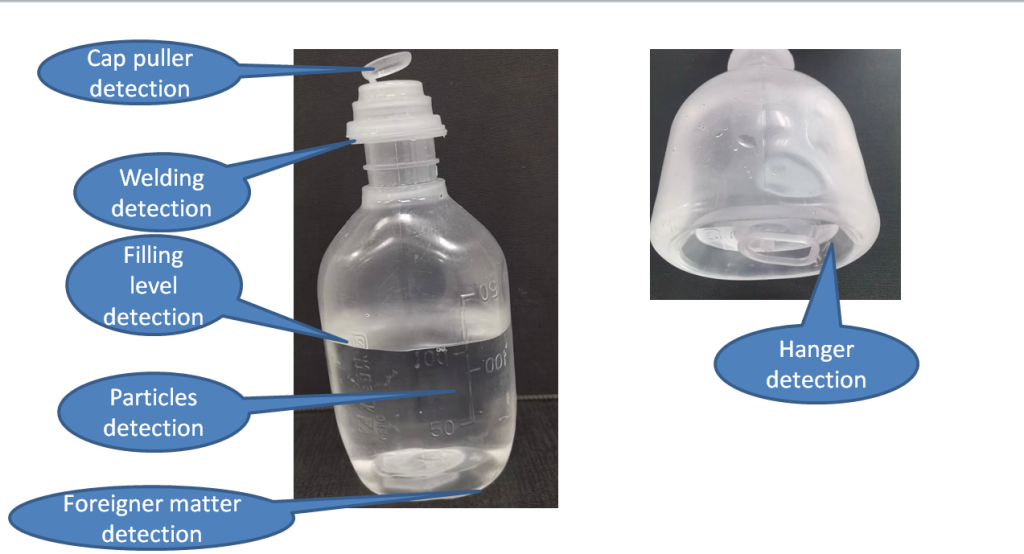

• Foreign matter in the liquid (color spots, black spots, fibers, glass chips, mosquitoes, hair, etc.)

• Pull tab defect detection

• Lifting ring defect detection

• Loading quantity detection

• Bottle cap detection

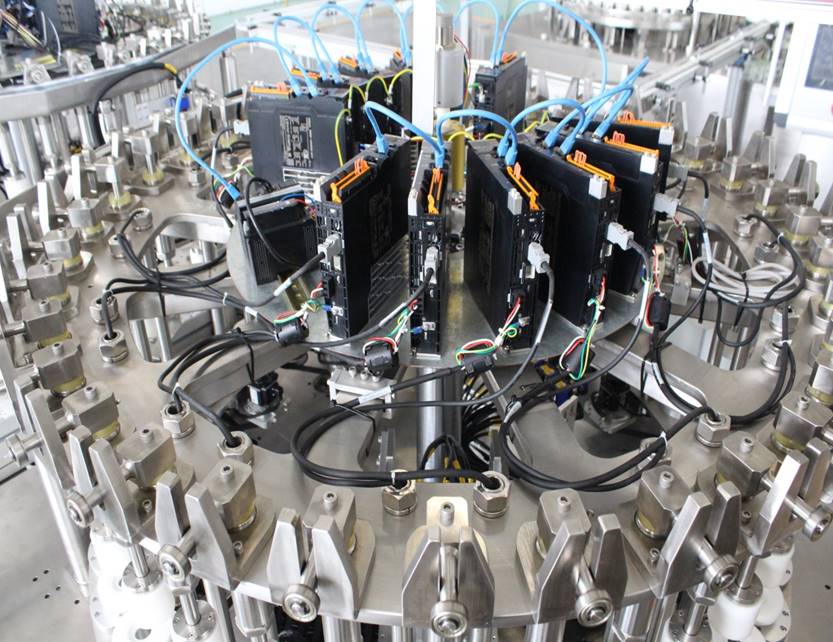

• Multiple industrial computers (Taiwan Advantech);

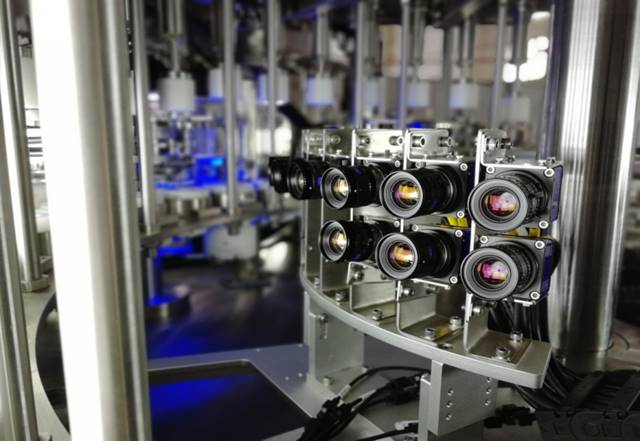

• High frame rate industrial camera (Basle, Germany);

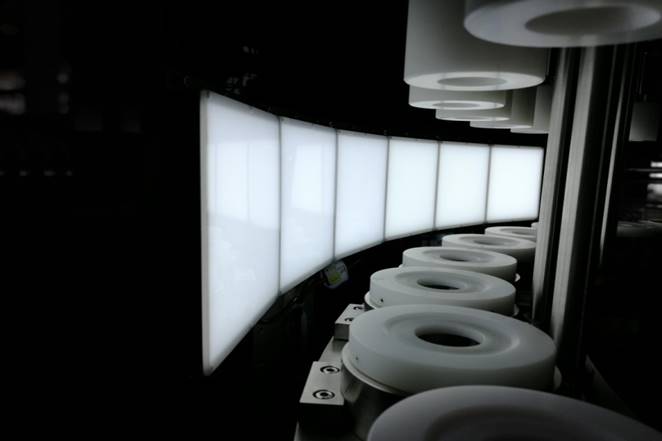

• Customized LED light source;

• Omron NJ series high-performance PLC;

• Omron/Inovance servo motor;

200-450 bottles/min , customize on you products and requirement

can detect visual particulate size : ≥50um
